High Efficiency
Maximum efficiency of up to 97.5% and MPPT efficiency above 99%.

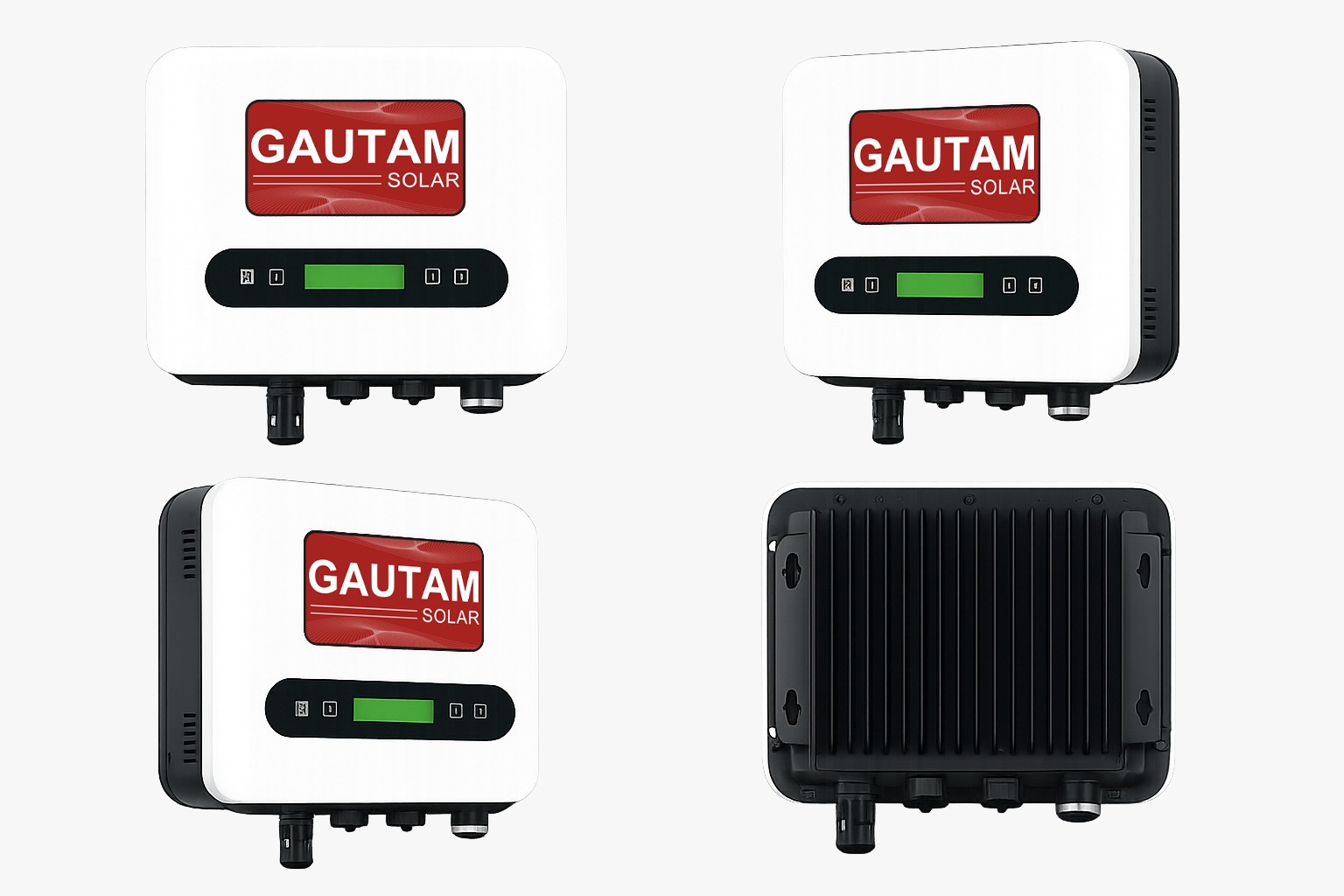

Product Overview
Efficient power conversion for rooftop solar systems
Available in 3 kW and 5 kW models, the series uses MPPT technology to optimise solar generation while supporting remote monitoring and dependable grid-connected operation.
⌁
Remote Monitoring
Wi-Fi and RS485 communication for compatible monitoring systems.
☂
IP65 Enclosure
Protection against dust and water ingress for suitable installation conditions.
◌
Quiet Operation
Natural-convection cooling with operating noise below 25 dB.
▣
Compact Design
Wall-mounted construction for easier handling and installation.
✓
Grid Ready
Single-phase on-grid architecture for residential rooftop applications.
Product Models
Choose the right inverter for your rooftop
3 kW ModelGet a Quote

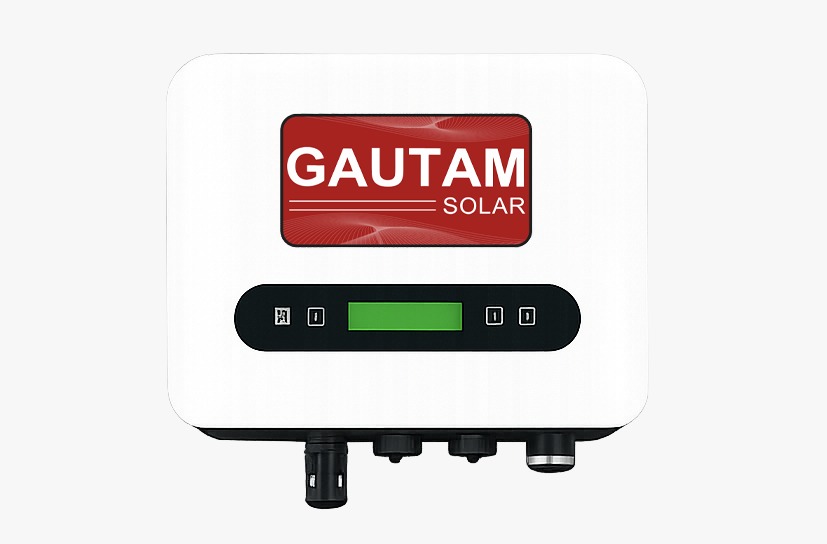

GSPL-3000XT
Compact single-phase inverter for homes and small rooftop systems.
Rated AC Output3 kW
Max DC Input3.9 kW
MPPT Range70–500 V
Maximum Efficiency97.5%
ProtectionIP65
Weight≤5 kg
5 kW ModelGet a Quote

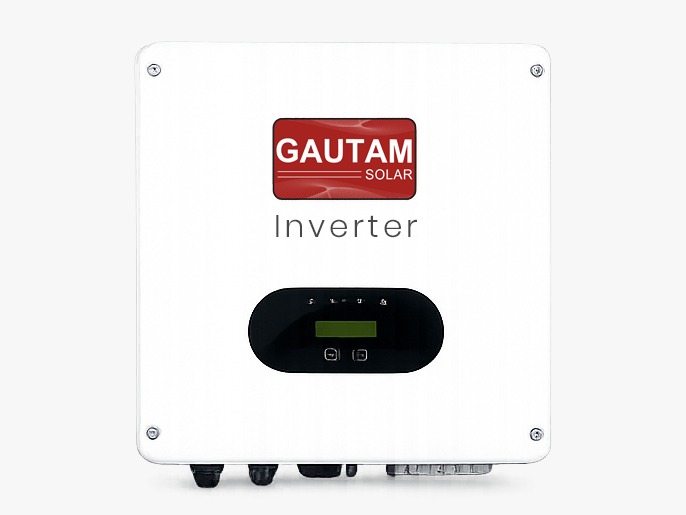

GSPL-5000XT
Higher-capacity inverter for larger homes, shops and small commercial properties.
Rated AC Output5 kW
Max DC Input6.5 kW
MPPT Range70–500 V
Maximum Efficiency97.5%
ProtectionIP65
Weight9 kg
Technical Comparison
3 kW and 5 kW inverter specifications
| Parameter | GSPL-3000XT | GSPL-5000XT |
|---|---|---|
| Rated AC output power | 3 kW | 5 kW |
| Maximum DC input power | 3.9 kW | 6.5 kW |
| Maximum DC input voltage | 550 V | 550 V |
| Start-up voltage | 80 V | 80 V |
| MPPT operating range | 70–500 V | 70–500 V |
| Maximum DC input current | 20 A | 20 A |
| Maximum AC apparent power | 3.3 kVA | 5.5 kVA |
| Maximum efficiency | 97.5% | 97.5% |
| Euro efficiency | 97.3% | 97.3% |
| Communication | Wi-Fi / RS485 | Wi-Fi / RS485 |
| Dimensions | 290 × 290 × 120 mm | 347 × 386 × 167 mm |
| Weight | ≤5 kg | 9 kg |
Applications
Ideal for residential and small commercial solar
Residential Rooftops
For independent houses and residential buildings.
PM Surya Ghar Installations
For appropriately designed systems, subject to current scheme and DISCOM requirements.
Shops and Offices
For properties with regular daytime electricity consumption.
Clinics and Institutions
For smaller facilities seeking rooftop solar savings.
Retail Outlets
Efficient solar conversion for daily commercial loads.
Small Commercial Properties
Suitable for appropriately sized single-phase systems.
Frequently Asked Questions
Inverter FAQs
Product Enquiry
Find the right inverter for your rooftop
